Hero Eco Med — Built for the Life You Want to Live
Need Help Choosing the Right Wheelchair? Talk to Our Mobility Expert Today
Thoughtfully designed to adapt to everyday needs, it combines adjustable comfort, removable wheels, and smooth maneuverability. Built for convenience and reliability, it empowers users with effortless mobility, lasting comfort, and confidence in every journey.
Couldn't load pickup availability
Ships safely within 7 days. Live WhatsApp tracking included.

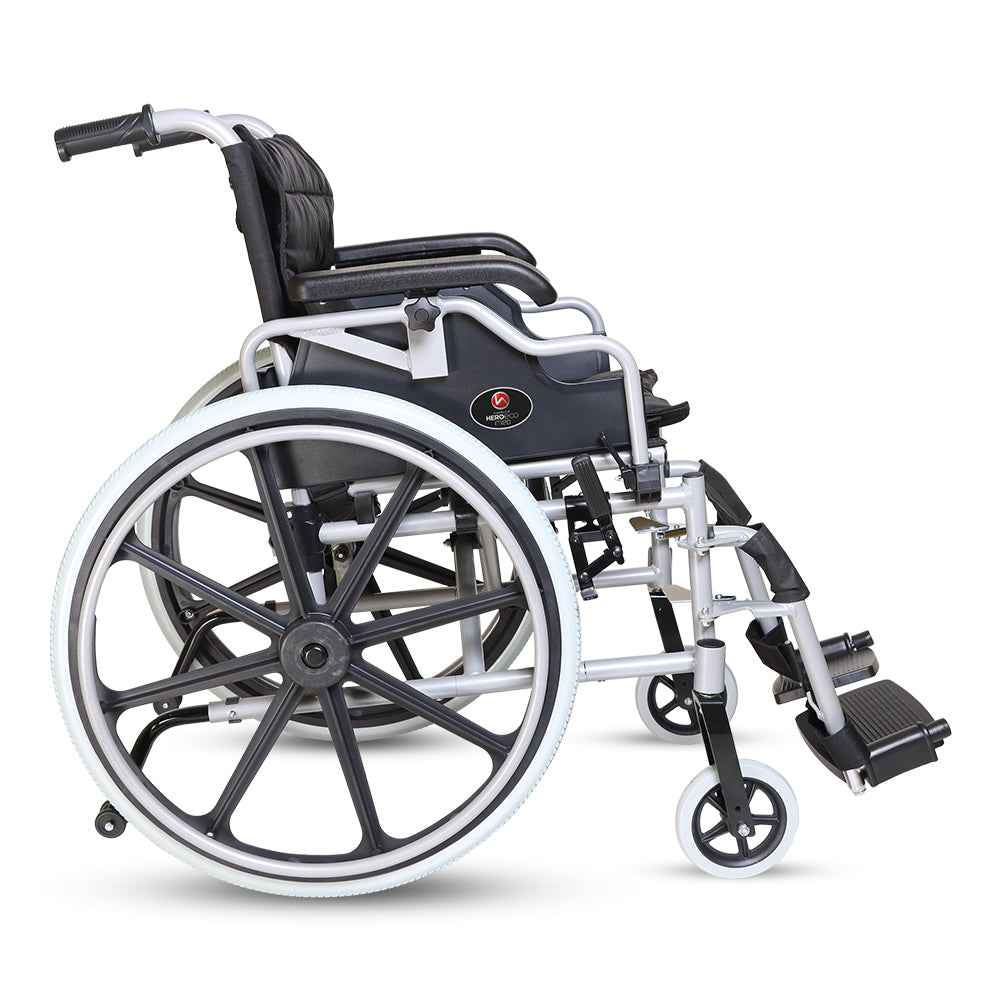

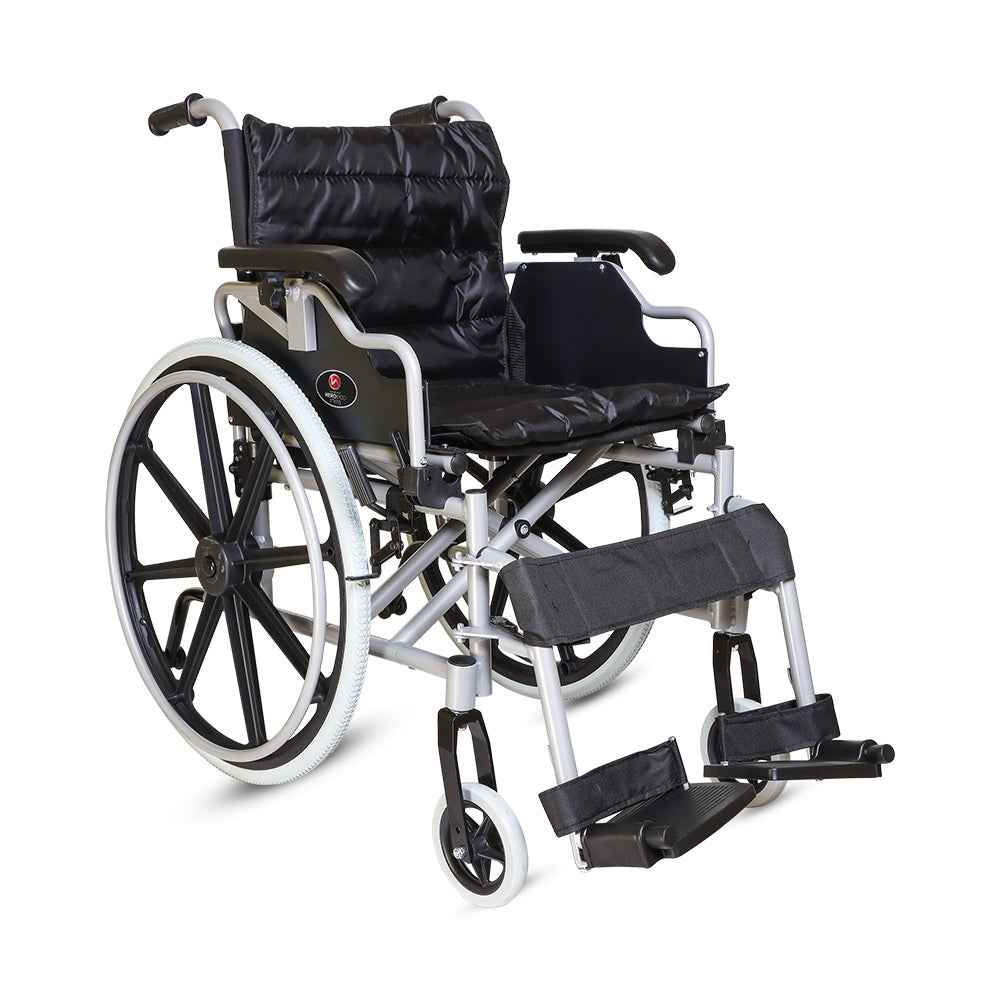

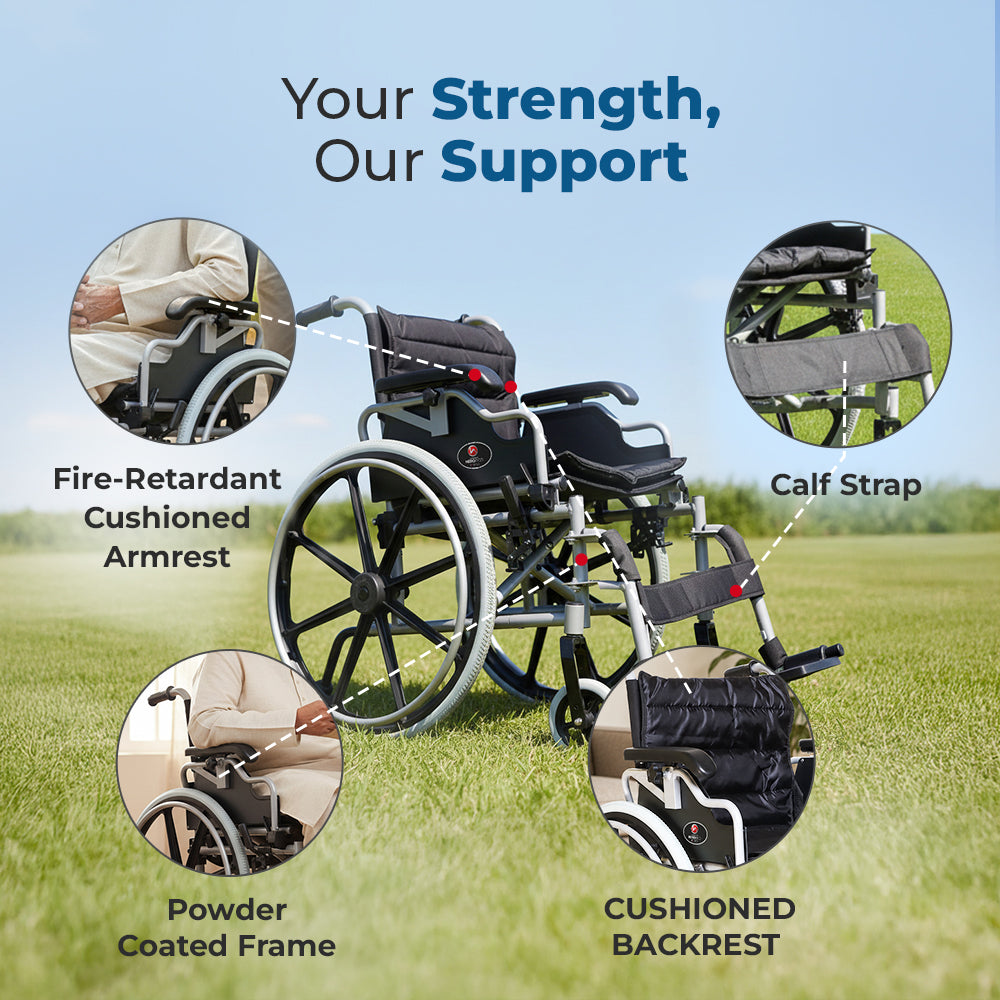

The Winn 302 H Heavy-Duty Manual Wheelchair holds a 150 kg capacity, with a 21.8-inch extra-wide seat and reinforced frame built for bariatric users who need real strength underneath them. Large 24-inch rear wheels and propelling rings let the user move on their own terms, while push handles keep an attendant within easy reach. The foldable design keeps storage and travel simple for daily use. Cushioned armrests, antimicrobial fire-retardant upholstery, and calf support are built for the long stretch, not just the test-sit. For elderly users, bariatric patients, and anyone who needs a wheelchair strong enough to trust and comfortable enough to simply forget about, the 302 H is built to hold up.
| SPECIFICATION | |
| Propulsion System | Manual |
| Frame | Powder Coated Aluminium frame with MS cross |
| Frame Tube Outer Diameter (mm) | 25.40 mm (Frame tubes) |
| Frame Tube Thickness (mm) | 2 mm |
| Frame Material Grade | 6061 / 2039 (c1) |
| Upholstery | Canvas, Antimicrobial & Fire-retardant |
| Weight Capacity | Up to 120 Kg |
| Net Weight | 16.960 Kgs |
| Gross Weight | 18.960 kgs |
| Front Wheel | Mag Design PP Castor |
| Rear Wheel | MAG Wheel with Solid Tyre |
| Foldable/Fixed | Foldable |
| Footrest Material | Plastic |
| Footrest Height Adjustable | Yes |
| Footrest Height Adjustment Mechanism | Nut Bolt |
| Footrest Detachable | Yes |
| Back Rest | Foldabale |
| Armrest Material | PU |
| Armrest Flippable | Yes |
| Armrest Flip Mechanism | Lever |
| Armrest Detachable | No |
| Armrest Height adjustable | Yes |
| Head Rest | NA |

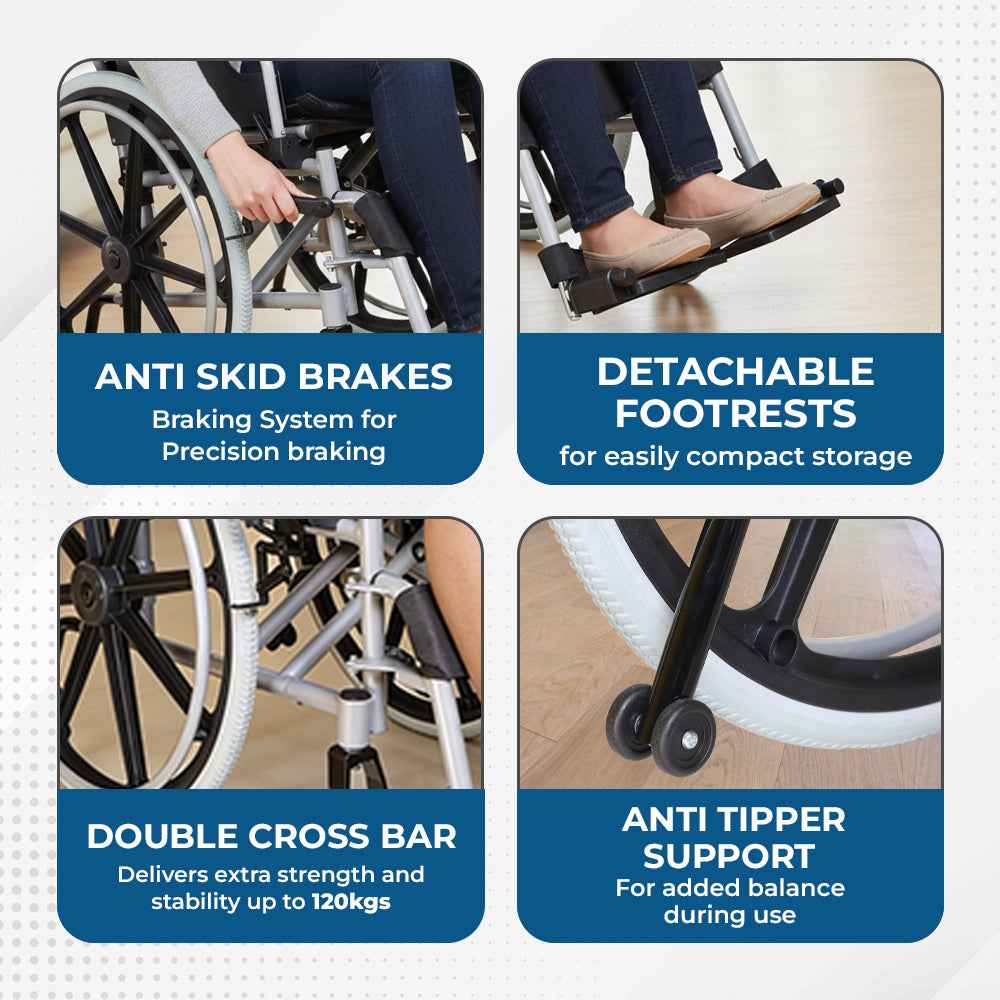

| Anti Tip Provision | Yes |
| Propelling Ring | Yes ( steel) |
| Manual Brakes | Yes |
| Attendant Brakes | No |
| Push Handles | Yes |
| Provision of Commode | No |
| Calf Strap | Yes |
| Color | Silver |
| Seat Cushion Included | Yes |
| Seat Cushion Thickness | (15 mm ) / cushion 25mm |
| Seat Cushion Material | Canvas |

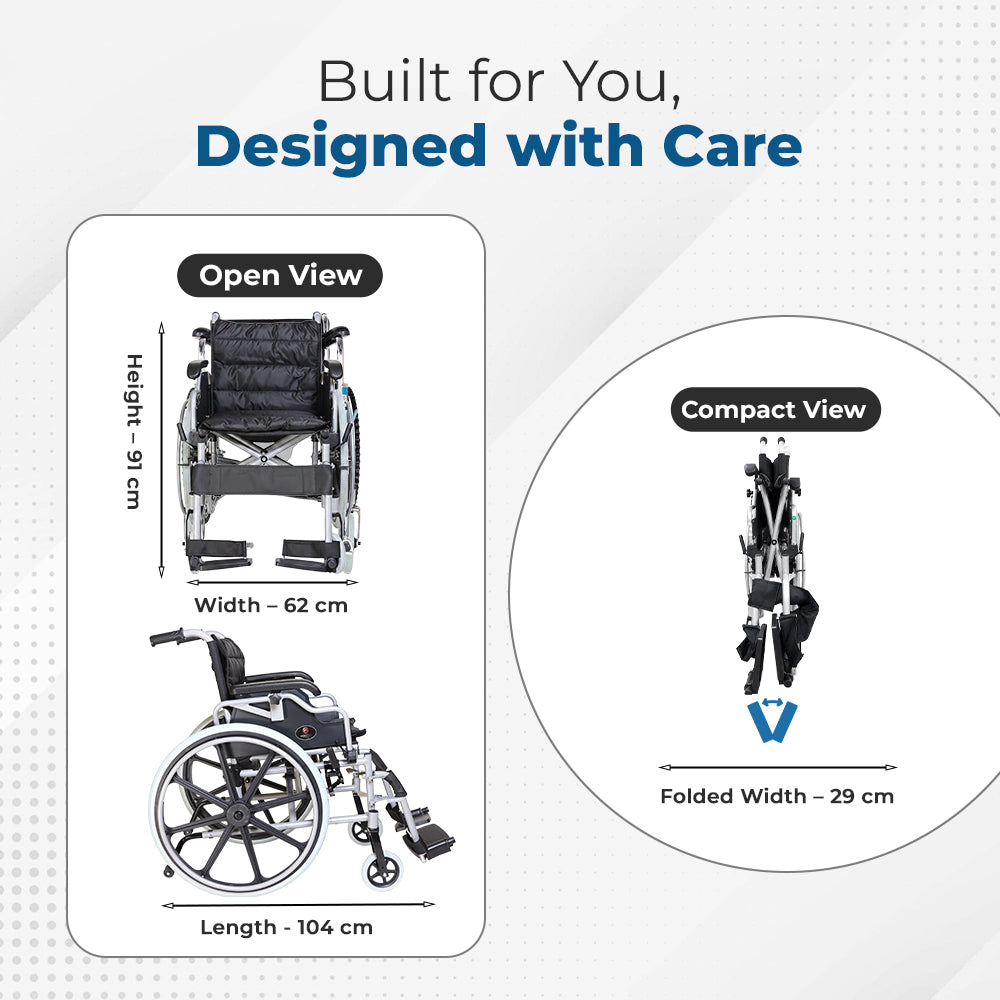

| DIMENSIONS | |
| Overall Length | 104.5 cm |
| Overall Height | 91.5 cm |
| Overall Width (Folded) | 29 cm |
| Overall Width (Open) | 62.5 cm |
| Seat Height (from Footrest) | 41 cm |
| Seat Height (from Ground) | 50.5 cm |
| Armrest Height (from Seat) | 23.5 cm |
| Ground Clearance | 7 cm |
| Ground Clearance (from Footrest) |
10 cm |
| Front Wheel | 6” |
| Rear Wheel | 24” |
| Seat Width /Seat Depth | (45.5 / 40.5) cm |
The Winn 302 H is rated for Up to 120 kg, built on a Powder Coated Aluminium frame with MS cross (6061 / 2039 (c1) grade steel). That capacity is tested at the frame, not just the seat cushion, so it holds up over years of daily transfers, not just the first few months.
Yes. It folds to 29 cm and weighs 16.960 kg unfolded, so one person can lift it into a hatchback or sedan boot without a second pair of hands.
Canvas, Antimicrobial & Fire-retardant. It's treated to resist microbes, and where it's canvas, it's fire-retardant too. It can simply be machine washed — no special detergents needed.
A reinforced frame rated to Up to 120 kg, a wider seat (45.5 cm wide and 40.5 cm deep), and 2 mm tube walls — thicker than our Standard range. It's built for users who need more supported weight without the frame flexing over time.
