Hero Ecomed E-Winn 304 I Reclining Electric Whe...

Hero Ecomed E-Winn 304 I Reclining Electric Wheelchair | Foldable Powered Wheelchair with Joystick Control | Oxford and mesh cloth upholstery | Mobility for Elderly & Disabled | 120 kg Capacity

Hero Ecomed E-Winn 304 I Reclining Electric Wheelchair | Foldable Powered Wheelchair with Joystick Control | Oxford and mesh cloth upholstery | Mobility for Elderly & Disabled | 120 kg Capacity

Name: Hero Ecomed E-Winn 304 I Reclining Electric Wheelchair | Foldable Powered Wheelchair with Joystick Control | Oxford and mesh cloth upholstery | Mobility for Elderly & Disabled | 120 kg Capacity
Brand: Hero Eco Med
Price: 229000.00 INR
Availability: InStock

Rs. 229,000.00

~~Rs. 229,000.00~~ Rs. 229,000.00

Taxes included. Shipping calculated at checkout.

When you need proper rest, not just a seat — the high reclining backrest goes back further, guided by smart joystick control that keeps every move easy. Removable battery, antibacterial upholstery, comfort built in.

Also available on:

Ships safely within 7 days. Live WhatsApp tracking included.

Expert Support

Free Delivery

7-Day Replacement

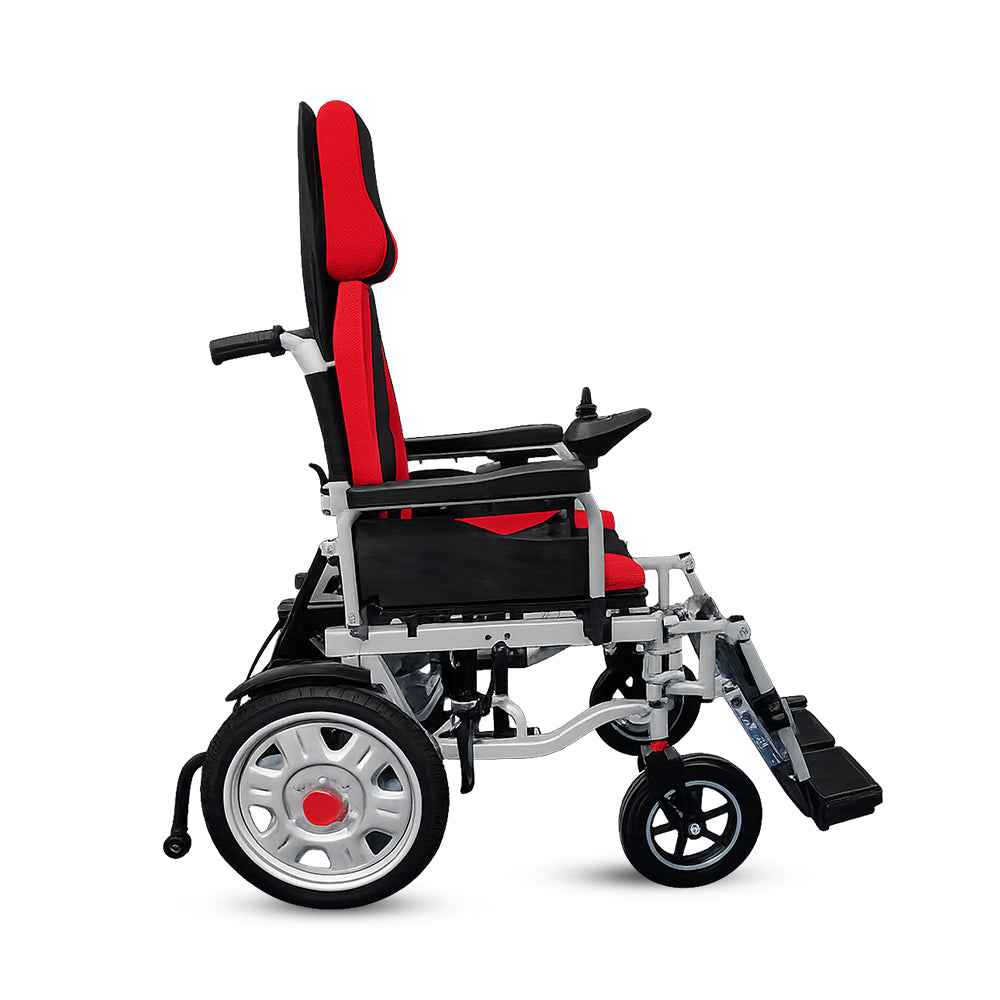

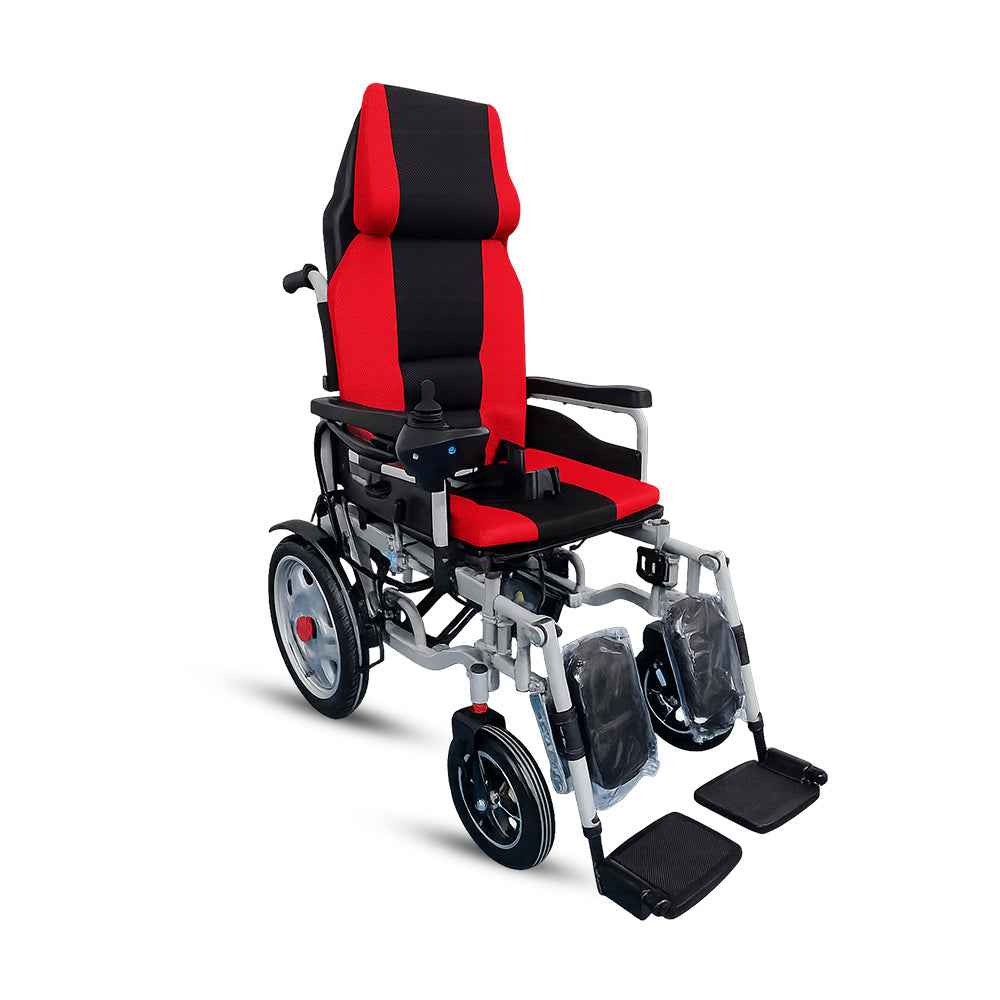

The Hero Eco Med E-Winn 304 I Reclining Electric Wheelchair is ergonomically designed to provide enhanced independence, comfort, and long-duration mobility support. Built with a strong steel frame, it ensures durability and stability with a weight capacity of up to 120 kg. It features a reclining backrest and adjustable footrests for improved comfort during extended use. The wheelchair is equipped with an interchangeable joystick controller, allowing smooth operation and 360-degree turning on all surfaces. The electromagnetic braking system ensures controlled stopping. The breathable Oxford and mesh cloth upholstery, foldable design, flip-up armrests, and detachable headrest make it practical, comfortable, and suitable for everyday use.

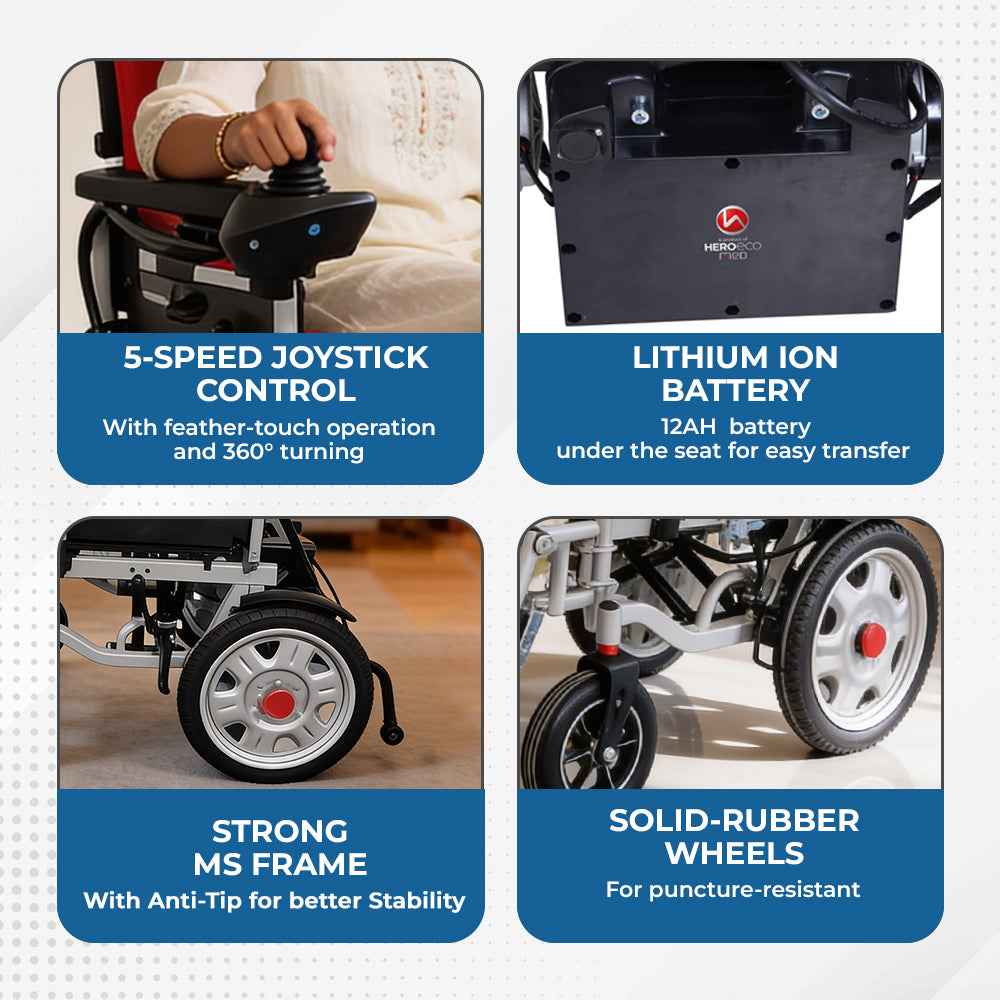

STRONG & DURABLE FRAME - Steel frame with reinforced double cross design supports up to 120 kg

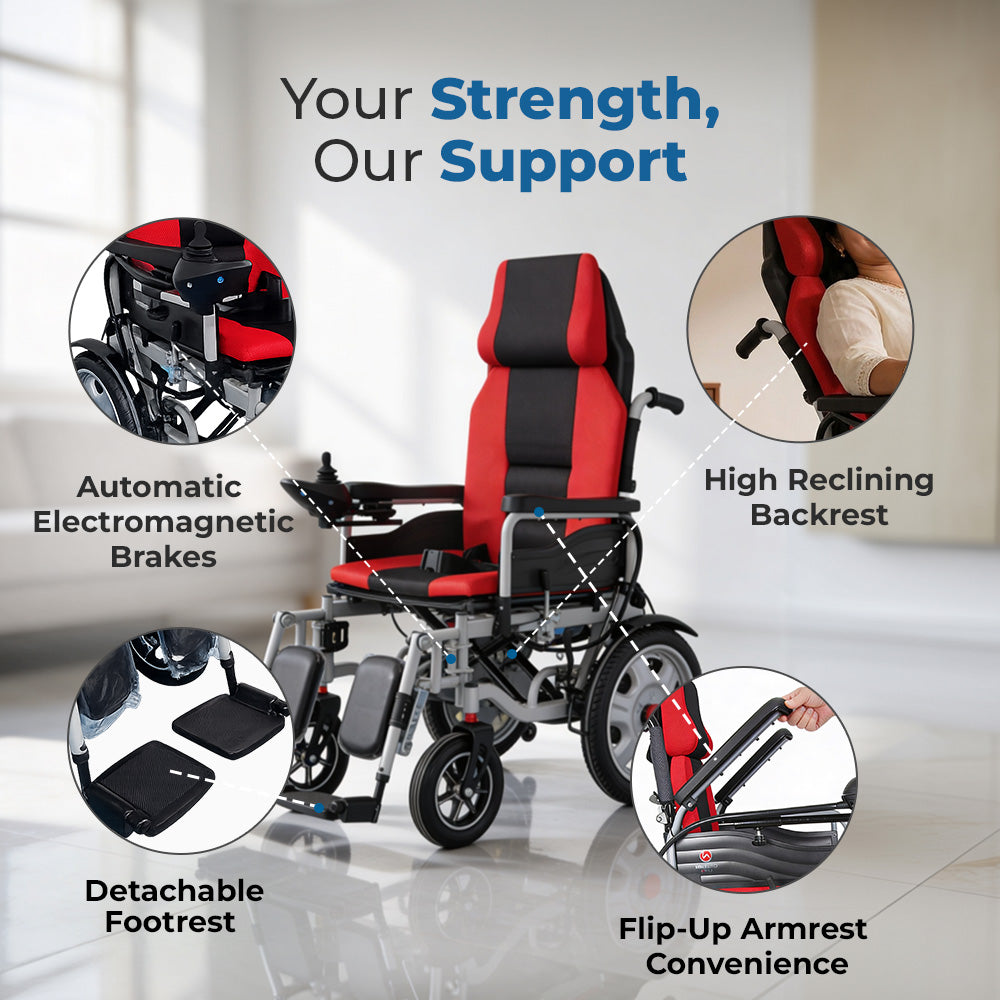

RECLINING COMFORT DESIGN - Reclining backrest with adjustable footrests and detachable headrest for extended use
JOYSTICK CONTROL SYSTEM - Interchangeable controller with 5-speed settings and 360° turning capability
STABLE & CONTROLLED MOVEMENT - 16-inch rear wheels, 10-inch front wheels, and an electromagnetic braking system
FOLDABLE & USER-FRIENDLY - Foldable structure with flip-up armrests and push handles for convenient storage and travel

SPECIFICATION
Propulsion System	Motorized
Motor Rating	DC 250Watt x 2 pc
Battery	Lithium Ion (LFP 25.9V 12AH)
Range (Single Charge)	15-20 Km
Charging Time (hrs)	6 hrs
Charger Type	Round 3 Pin
Maximum Speed	6 Km/h
Frame	Strong MS Frame
Upholstery	Oxford and Mesh Cloth With Cushion
Frame Tube Outer Diameter (mm)	25.4 frame upper tube , Square tube 30/30 , rectangular tube 30/40
Frame Tube Thickness (mm)	1.6
Frame Material Grade	IS 2039 - C1
Weight Capacity	120 Kgs
Net Weight (with battery)	45.12 Kg
Gross Weight (with packaging)	49.21 Kg
Footrest Height Adjustable	Yes
Footrest Adjustment Mechanism	Nut Bolt
Footrest Detachable	Yes
Front Wheel	Mag Design Solid Rubber
Rear Wheel	Metal Rim with Pneumatic Tyre Tube
Armrest Material	PU
Armrest Flippable	Yes
Armrest Flip Mechanism	Lever
Armrest Detachable	No
Armrest Height adjustable	No
Foldable/Fixed	Foldable
Footrest Material	Plastic
Back Rest	High back
Head Rest	Yes
Anti Tip Provision	Yes, with Castors
Propelling Ring	No
Manual Brakes	Yes
Electromagnetic Brakes	Yes
Attendant Brakes	No
Push Handles	Yes
Provision of Commode	No
Calf Strap	Yes
Color	Frame - Silver (Cushion - Red & Black)

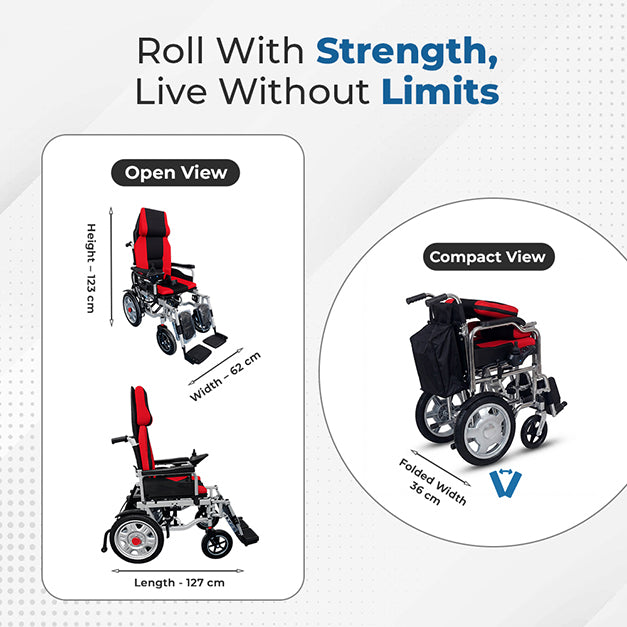

DIMENSIONS
Overall Length	127.5 cm
Overall Height	123 cm
Overall Width (Folded)	36 cm
Overall Width (Open)	62 cm
Seat Height (from Footrest)	51 cm
Seat Height (from Ground)	46 cm
Armrest Height (from Seat)	19 cm
Ground Clearance	5 cm
Ground Clearance (from Footrest)	(5.5 - 10.5) cm
Front Wheel	10"
Rear Wheel	16"
Seat Width /Seat Depth	(45.5 / 44.5) cm

Q1. How far will the E-Winn 304 I go on a single charge?

15-20 Km on its Lithium Ion (LFP 25.9V 12AH) pack, powered by DC 250Watt x 2 pc. Range depends on rider weight and terrain, so treat this as a real-world figure for flat, paved routes rather than a lab number.

Q2. How long does it take to charge, and can I plug it in at home?

About 6 hrs for a full charge, using a standard Round 3 Pin plug — no special wiring or charging station needed.

Q3. How heavy is the E-Winn 304 I with the battery in, and can I lift it into a car alone?

45.12 kg including the battery. That's manageable for one person into a hatchback boot, though with a pack this size it helps to have a second pair of hands if you're loading it daily.

Q4. What stops the chair from rolling if I let go of the joystick, especially on a slope?

Electromagnetic brakes engage automatically the moment the joystick is released, holding the chair in place on an incline. Manual brakes are fitted as a backup.

Q5. Why choose the lithium-ion version over the lead-acid one?

The lithium-ion pack (Lithium Ion (LFP 25.9V 12AH)) gives 15-20 Km, against 10–15 km on the lead-acid range, and the battery itself is lighter and doesn't need the periodic top-up charging that lead-acid batteries do. It costs more upfront and asks less of you day to day.

View full details
