Hero Ecomed E-Winn 304 A | Electric Foldable Wheelchair | Dual Motor | 5-Speed Joystick Control | Motorized Wheelchair for Elderly & Disabled | Capacity 120 kg

Hero Ecomed E-Winn 304 A | Electric Foldable Wheelchair | Dual Motor | 5-Speed Joystick Control | Motorized Wheelchair for Elderly & Disabled | Capacity 120 kg

Rs. 199,999.00

~~Rs. 199,999.00~~ Rs. 199,999.00

Taxes included. Shipping calculated at checkout.

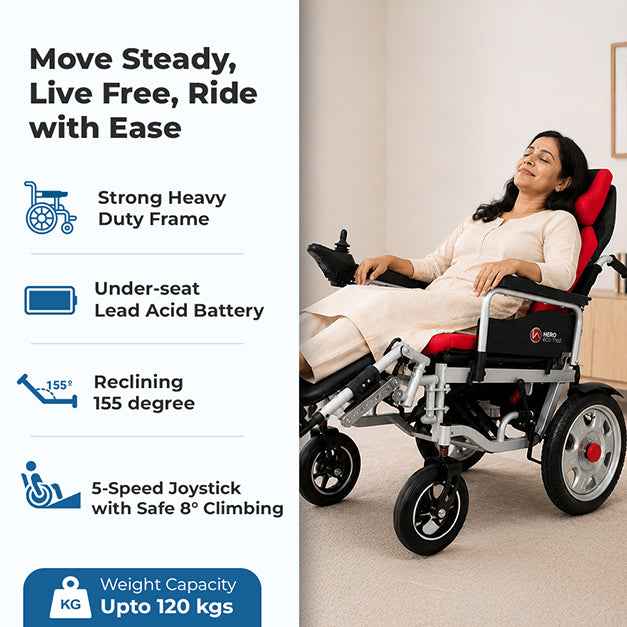

A foldable power wheelchair with a high reclining backrest, twin 250W motors, and a 5-speed feather-touch joystick for smooth, effortless navigation. Its strong MS frame supports up to 120 kg with electromagnetic braking, manual brakes, and anti-tip castors for added safety, while Oxford mesh cushioning, flip-up armrests, and calf support deliver lasting comfort — combining strength, safety, and everyday mobility in one design.

Ships safely within 7 days. Live WhatsApp tracking included.

Expert Support

Free Delivery

7-Day Replacement

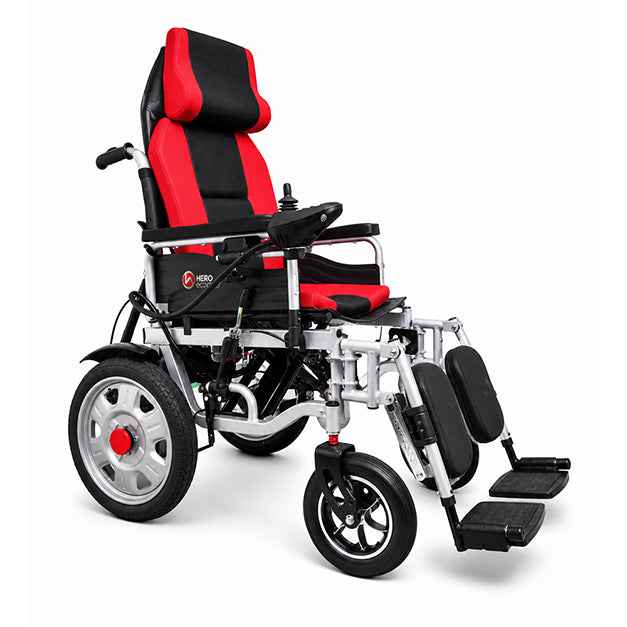

The Hero Ecomed E-Winn 304 A is an electric foldable wheelchair for everyday mobility solutions. Powered by twin 250W DC motors and a 24V lead-acid battery, it delivers smooth performance up to 6 km/h. The 5-speed feather-touch joystick enables effortless 360°
navigation indoors and outdoors. Built on a strong MS frame, it supports up to 120 kg with electromagnetic braking, manual brakes, anti-tip castors, and pneumatic rear tyres for stability and safety. The foldable frame collapses to 36 cm width with a foldable backrest, headrest, and detachable footrest for easy storage and transport. Oxford mesh cushioned upholstery, PU flip-up armrests with lever mechanism, and calf strap ensure comfort during
extended use. An ideal mobility solution for users seeking comfort and independence.

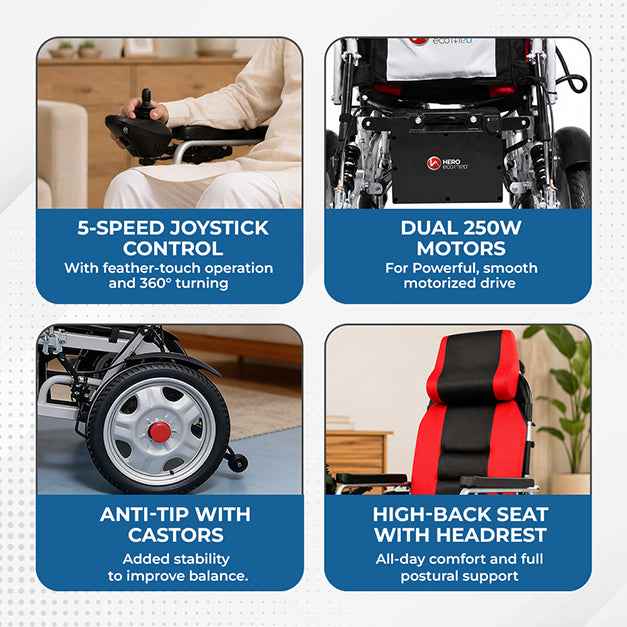

DUAL 250W MOTORS & LONG-RANGE BATTERY - Twin 250W DC motors with 24V/28Ah lead-acid battery deliver smooth 6 km/h performance and 10–15 km range per charge for all-day mobility.
5-SPEED JOYSTICK CONTROL – Ergonomic feather-touch joystick with 5-speed controller ensures effortless 360° navigation across all spaces.

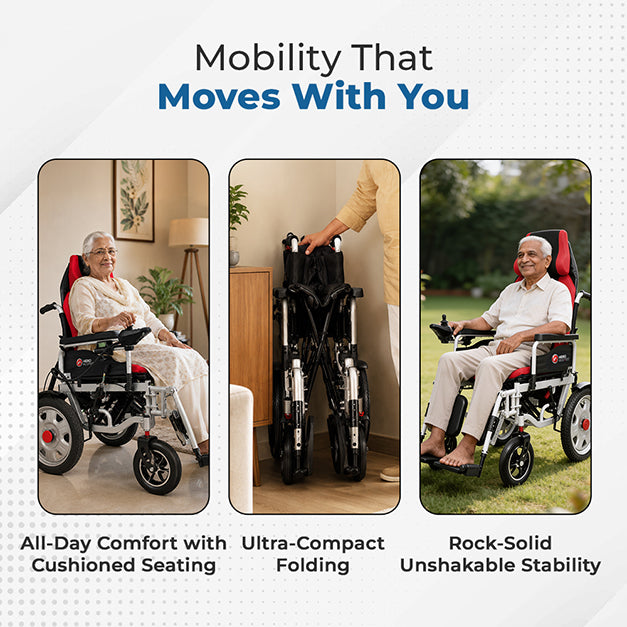

FOLDABLE & TRAVEL-READY DESIGN - Compact MS frame with foldable high backrest, headrest, and detachable footrest for easy storage and transport.
HEAVY-DUTY SAFE BUILD - Strong MS frame with electromagnetic braking, manual brakes, anti-tip castors, and pneumatic rear tyres ensures stability and safety up to 120 kg

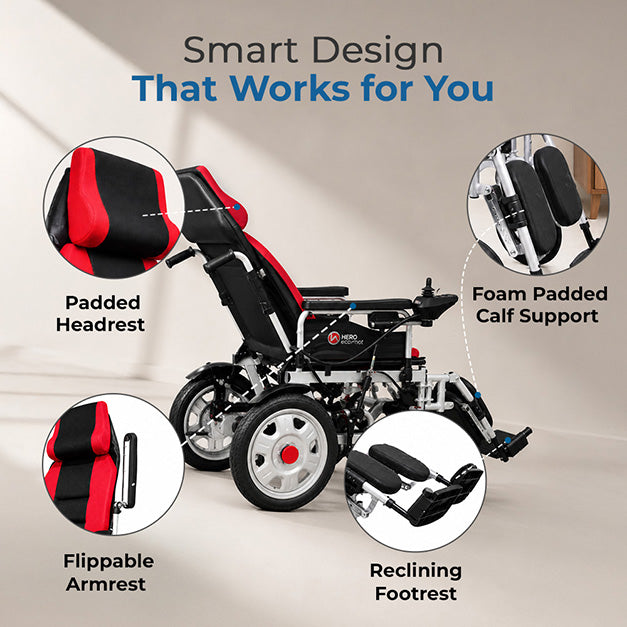

SUPERIOR COMFORT & ERGONOMIC DESIGN - Oxford mesh cushioning, Flip-up armrests, calf support, and adjustable footrest deliver long-lasting comfort during extended use.

SPECIFICATION
Propulsion System	Motorized
Motor Rating	DC 250Watt x 2 pc
Battery	Lead Acid (12V 14AH x 2pcs)
Range (Single Charge)	10-15 Km
Charging Time (hrs)	6 hrs
Charger Type	Round 3 Pin
Maximum Speed	6 Km/h
Frame	Strong MS Frame
Upholstery	Oxford and Mesh Cloth With Cushion
Frame Tube Outer Diameter (mm)	25.4 frame upper tube , Square tube 30/30 , rectangular tube 30/40
Frame Tube Thickness (mm)	1.6
Frame Material Grade	IS 2039 - C1
Weight Capacity	Up to 120 Kg
Net Weight (with battery)	48.34 Kg
Gross Weight (with packaging)	52.62 Kg
Footrest Height Adjustable	Yes
Footrest Adjustment Mechanism	Nut Bolt
Footrest Detachable	Yes
Front Wheel	Mag Design Solid Rubber
Rear Wheel	Metal Rim with Pneumatic Tyre Tube
Armrest Material	PU
Armrest Flippable	Yes
Armrest Flip Mechanism	Lever
Armrest Detachable	No
Armrest Height adjustable	No
Foldable/Fixed	Foldable
Footrest Material	Plastic
Back Rest	High back
Head Rest	Yes
Anti Tip Provision	Yes, with Castors
Propelling Ring	No
Manual Brakes	Yes
Electromagnetic Brakes	Yes
Attendant Brakes	No
Push Handles	Yes
Provision of Commode	No
Calf Strap	Yes
Color	Frame - Silver (Cushion - Red & Black)

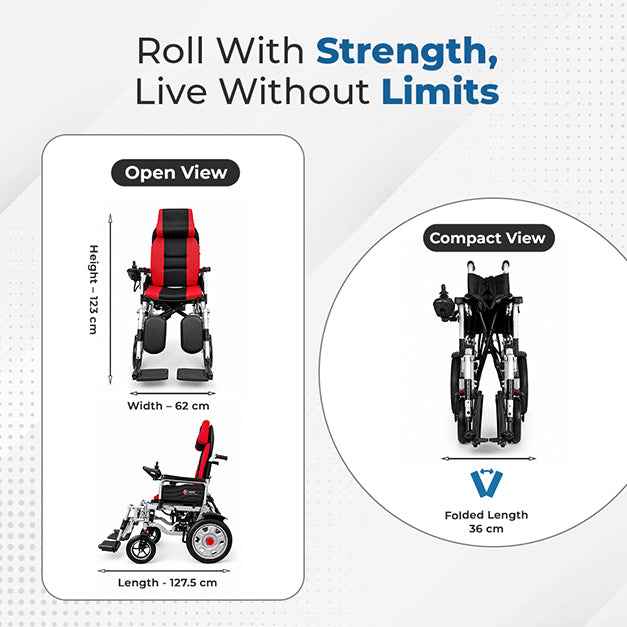

DIMENSIONS
Overall Length	127.5 cm
Overall Height	123 cm
Overall Width (Folded)	36 cm
Overall Width (Open)	62 cm
Seat Height (from Footrest)	51 cm
Seat Height (from Ground)	46 cm
Armrest Height (from Seat)	19 cm
Ground Clearance	5 cm
Ground Clearance (from Footrest)	(5.5 - 10.5) cm
Front Wheel	10"
Rear Wheel	16"
Seat Width /Seat Depth	(45.5 / 44.5) cm

Q1. How far will the E-Winn 304 A go on a single charge?

10-15 Km on its Lead Acid (12V 14AH x 2pcs) pack, powered by DC 250Watt x 2 pc. Range depends on rider weight and terrain, so treat this as a real-world figure for flat, paved routes rather than a lab number.

Q2. How long does it take to charge, and can I plug it in at home?

About 6 hrs for a full charge, using a standard Round 3 Pin plug — no special wiring or charging station needed.

Q3. How heavy is the E-Winn 304 A with the battery in, and can I lift it into a car alone?

48.34 kg including the battery. That's manageable for one person into a hatchback boot, though with a pack this size it helps to have a second pair of hands if you're loading it daily.

Q4. What stops the chair from rolling if I let go of the joystick, especially on a slope?

Electromagnetic brakes engage automatically the moment the joystick is released, holding the chair in place on an incline. Manual brakes are fitted as a backup.

Q5. How is the lead-acid battery different from the lithium-ion option, and do I need to maintain it?

The Lead Acid (12V 14AH x 2pcs) pack gives 10-15 Km per charge. Lead-acid batteries are heavier and are best given a full charge cycle rather than frequent top-ups, but they cost less upfront than the lithium-ion range (E-Winn 201 I–304 I).
